ANEMOMETER3

windspeed sensor

  • Range: 67 m/s / 0 - 150 mph
  • Starting threshold: 0.45 m/s / 1.0 mph
  • Accuracy: ±0.11 m/s / 0.25 mph or 2%
  • Distance constant: Less than 4.5m / 15 ft
  • Operating range: -50°C to +70°C (-58°F to +158°F)
  • Contact rating: 10 mA maximum
  • Weight: 400gms / 14oz
  • Finish: Black anodized aluminium
  • Mounting: Optional PN 191 crossarm assembly (optional – can also be used to mount wind direction sensor ANEMOMETER4)

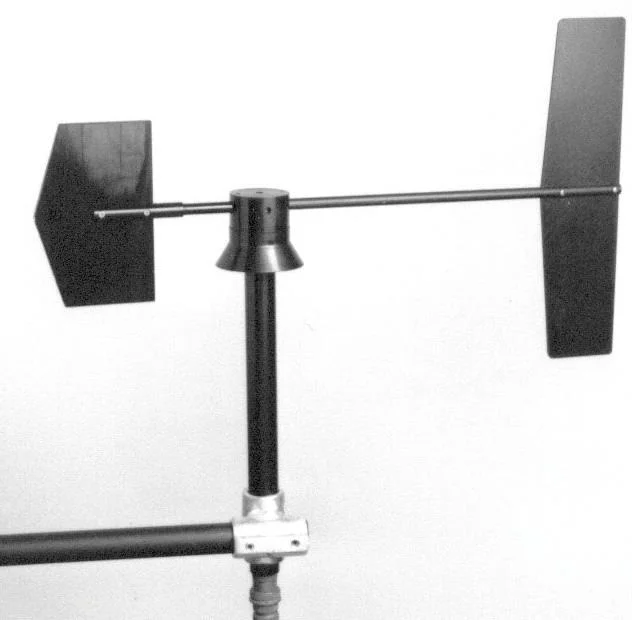

anemometer4

wind direction sensor

Robway’s Wind Direction Sensor has been specifically designed to accurately and reliably measure wind direction under the most adverse environmental conditions. It is particularly useful in remote, unattended monitoring applications where high winds and/or heavy icing conditions are likely to be encountered. Only the best corrosion resistant material, such as stainless steel and anodized aluminum, are used in production.

  • Low starting threshold of 0.67 m/s (1.5 mph)
  • Unique “Mechanical Average System” reduces sensor wear
  • Built-in alignment and calibration fixture
  • Built-in ice skirt allowing operation with a 5.1cm (2˝) ice load
  • Slotted shaft coupler for increased sensor life
