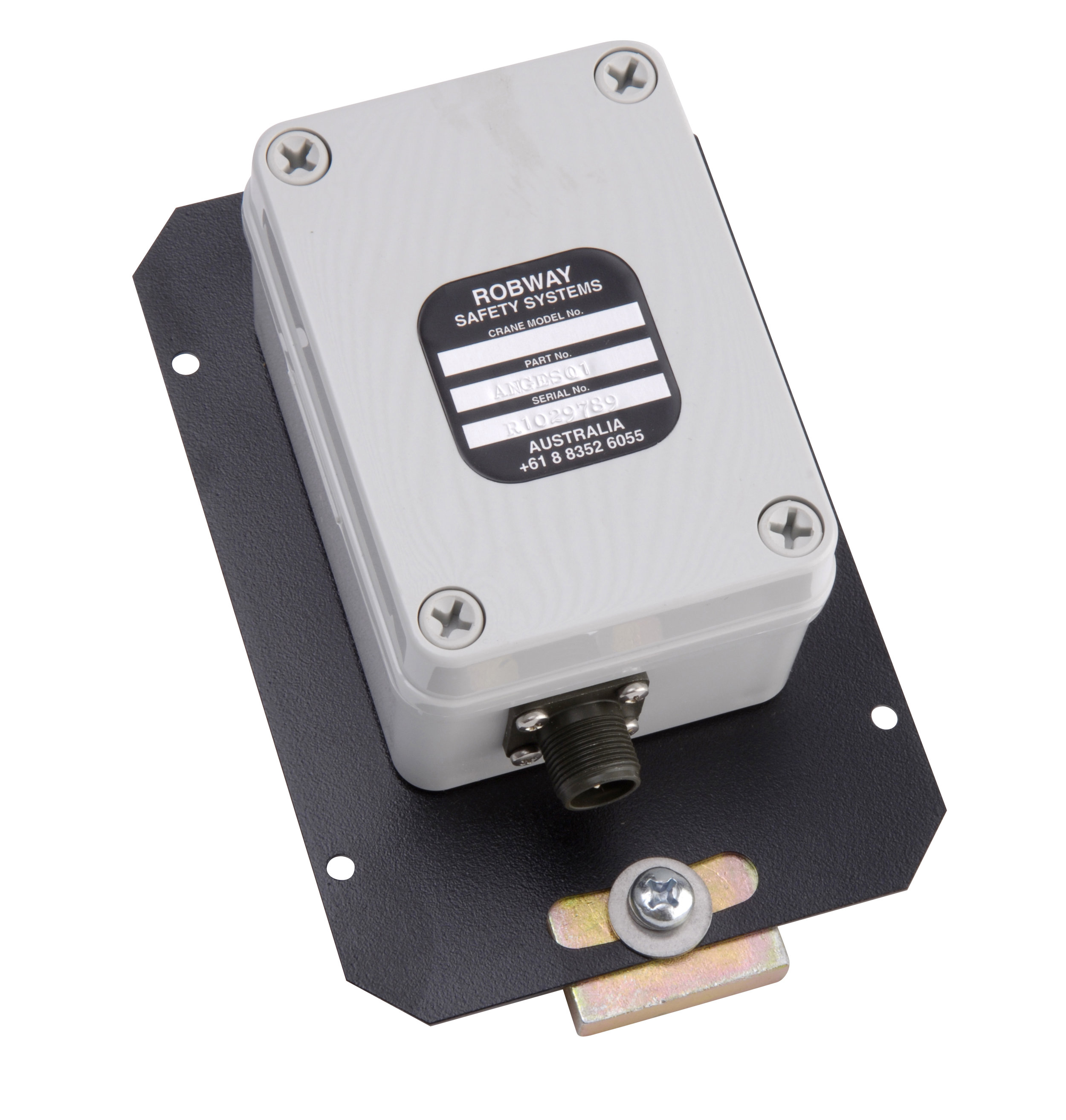

ANGES01

0-90 degree electronic angle sensor

  • 0-120 degree angle sensing applications
  • Output signal: ratiometric voltage
  • Output range, 5VDC supply: 1.547 -3.392 V
  • Enclosure: IP65 rated environmental enclosure
  • Operating temperature: 20°C to +60°C (tested to -30°C to +70°C)
  • Dimensions: 170mm (h) x 115mm (w) x 70mm (d)
  • Excitation voltage: 4.0 VDC regulated (provided by the system controller unit)
  • Operating range: +/- 45° (offset mounted to accommodate 0 - 90°)
  • Accuracy: +/- 0.2°
  • Cable entry: 3-pin mil-spec type connector
  • Mounting: Via back-plate bracket to boom base
  • Weight: 0.5kg
  • Pin/wire connections:
    • Pin A - red - positive excitation
    • Pin B - white - signal
    • Pin C - black - negative excitation
  • Expected resistances: High ohms or open circuit between any of the wires and chassis or shield

anges4130

Boom angle sensor offshore pedestal cranes

  • Analogue output
  • Range: 0-90°
  • Operating temperature: -20°C to +60°C (tested to -30°C to +70°C)
  • Enclosure type: EEx d IIC T6 -20°C < Ta < +55°C
  • Enclosure certifications: LOM02ATEX2037 IECEx BKI 07.0026
  • Dimensions: 95mm diam x 89.5mm
  • Excitation voltage: Range 4.0 to 5.0 VDC regulated (provided by the system controller unit)
  • Operating range: +/- 45° (offset mounted to accommodate 0-90°)
  • Accuracy: +/- 0.2°
  • Cable entry: M20 gland
  • Mounting via mounting bracket kit provided
  • Weight: 1.8kg (approx)
  • Cable entry: Ex d barrier gland
  • Cable certification: IECEx TSA 09.0024
  • Expected resistances: High ohms or open circuit between any of the wires and chassis or shield

ANGZCT18040

Angle sensor

  • Output signal: 4-20 milliamps
  • Range: 0 – 180°
  • Accuracy: +/- 0.2
  • Power supply: 9-36 VDC
  • Connection: M12 5-way
  • Operating temp: -20°C to +60°C
  • Dimensions: 72 x 72 x 45mm (l x w x h)
  • Weight: 0.5kg (approx)
